When we travel by air today, we rarely pay attention to airplane design details. However, in aviation engineering, no design happens purely for aesthetics. Many passengers ask, “Why are airplane windows round?” The answer stems from deadly engineering lessons and strict physical laws. Round airplane windows offer more than just a sleek look. They are one of the most critical safety features that allow passengers to travel securely at tens of thousands of feet.
In this article, we will explore the de Havilland Comet tragedy that rewrote civil aviation history. We will also examine the physical effects of metal fatigue and modern aircraft manufacturing standards.
The Jet Age, Pressurization, and Airplane Window Shape
The aviation industry experienced a massive revolution in the 1950s. Aircraft manufacturers began developing jet-powered passenger planes. These jets flew faster and higher than older propeller planes. As airplanes reach higher altitudes, air resistance decreases, and fuel efficiency increases. Furthermore, flying higher helps pilots avoid turbulent lower weather layers.
However, the thin and cold air at high altitudes is not suitable for human survival. Therefore, engineers had to pressurize aircraft fuselages. The difference between the high internal cabin pressure and the low external pressure constantly pushes outward on the aircraft’s skin. Consequently, the fuselage slightly expands like a balloon during every takeoff and shrinks back during landing. In aviation literature, experts call this exhausting structural process “cyclic loading.”
The de Havilland Comet Tragedy: Unexpected Flaws
The British-made de Havilland Comet was the first commercial passenger jet of the jet age. Entering service in 1952, this aircraft was an absolute technological marvel for its time. Its large, rectangular airplane windows offered passengers an unparalleled view. However, designers failed to foresee the long-term structural impacts of this geometric choice.
In 1954, two Comet aircraft—BOAC Flight 781 and South African Airways Flight 201—inexplicably disintegrated in mid-air during cruise flight. Both accidents resulted in the deaths of all passengers, and authorities immediately grounded the massive Comet fleet. British regulators and expert engineers launched one of history’s most extensive accident investigations. When researchers analyzed the wreckage recovered from the ocean, they discovered that the root cause was not engine failure, but the fuselage design itself.
Water Tank Tests and Metal Fatigue
To prove the exact cause of the crashes in a laboratory setting, Royal Aircraft Establishment (RAE) engineers built a massive water tank in Farnborough. They placed an entire Comet fuselage (registered as G-ALYU) inside this tank and pressurized the cabin with water. Since water is denser than air, it reduces the risk of an explosive blast while safely simulating pressure changes.
Engineers simulated takeoff and landing cycles by pressurizing and depressurizing the aircraft thousands of times. After exactly 3,057 simulated flight cycles, the fuselage violently ruptured. The investigations confirmed that the deadly cracks originated right at the corners of the passenger and antenna windows. The aluminum fuselage had suffered a severe structural collapse known as “metal fatigue.”
| Comparison Criteria | De Havilland Comet 1 (1952) | Modern Passenger Jets (Present) |
|---|---|---|
| Window Geometry | Rectangular with Insufficient Corner Radius | Fully Curved / Oval |
| Stress Concentration (Kt) | Extremely High (Up to 300% stress increase at corners) | Low and Balanced (Even stress distribution) |
| Manufacturing Process | Punch-Riveting | Precision Drilling and Composite Bonding |
| Window Material | Single-layer Perspex (Early Acrylic) | 3-Layer Reinforced Acrylic/Polycarbonate |
| Critical Fatigue Life | ~3,057 Flight Cycles | +50,000 Flight Cycles |
Stress Concentration and the Punch-Riveting Error
At this point, basic material science and physics principles come into play. When an aircraft is pressurized, the tension force flows and distributes across the fuselage material. The engineering answer to why airplane windows are round lies right here. Rectangular windows with an insufficient corner radius restrict this force flow, causing energy to build up in the tight corners. Engineers call this phenomenon “stress concentration.”
To calculate the stress concentration in an insufficiently curved area, engineers use the stress concentration factor. The general formulation is expressed as:
Here, Kt represents the concentration factor, σmax is the maximum stress at the corner, and σnom is the nominal stress across the general material. On the Comet’s windows, the Kt value reached critical, unsustainable levels.
Crucial Finding: RAE researchers found a second deadly manufacturing error called “punch-riveting.” During the installation of the window frames, workers used a punch to create rivet holes instead of cleanly drilling them. This harsh manufacturing process created micro-cracks in the metal while the plane was still in the factory.
The combination of high stress (Kt) at the poorly curved corners and manufacturing cracks from the punch holes made the explosive decompression of the aircraft inevitable.
How Do Round Airplane Windows Distribute Pressure?

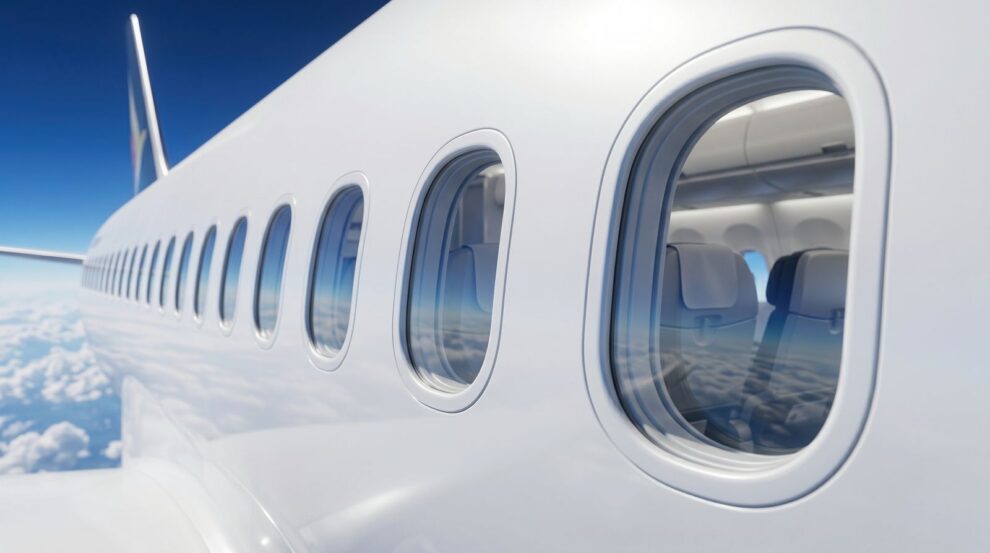

Following the bitter lessons learned from the Comet crashes, engineers completely redesigned airplane windows. The ultimate answer to why airplane windows are round is that oval designs completely eliminate stress concentration.
In an oval window, structural loads on the fuselage do not face sudden interruptions. Instead, the tension force glides smoothly around the curved edges. This smooth flow distributes the pressure evenly across the entire window frame. Even though the aircraft fuselage expands and contracts repeatedly, the risk of metal fatigue drops to a minimum. Today, giant aircraft manufacturers like Boeing and Airbus enforce this curved engineering rule as a mandatory standard on all their assembly lines.
Airplane Windows Standards in Modern Aircraft Manufacturing Processes
In the modern civil aviation industry, airplane windows designs are not only curved; they also utilize highly advanced composite materials. A modern aircraft window consists of three separate transparent layers to maximize pressure resistance. This structure acts as a “fail-safe” mechanism.
First, the innermost layer that passengers touch acts as a protective shield against scratches and has no structural role. The middle layer serves as a backup safety shield and features a tiny “breather hole.” This small hole balances the air pressure between the cabin and the window panels, transferring the primary load to the outermost layer. Finally, the outer layer is the main structural acrylic or polycarbonate glass. It integrates directly with the aircraft’s fuselage and withstands extreme pressure and sub-zero temperatures.
Additionally, aviation authorities like the FAA and EASA subject modern airplane windows to rigorous testing before they enter service. Inspectors test these airplane windows against bird strikes, sudden cabin pressure drops, and extreme temperature fluctuations with forces far exceeding normal standards.
Conclusion
Unfortunately, major advancements in aviation history often emerge from data gathered after tragic accidents. The question of why airplane windows are round is a direct summary of an engineering evolution paid for dearly by the de Havilland Comet crashes. Today, the oval windows that allow us to travel safely through the skies prove the life-saving power of geometry. Consequently, experts recognize this as one of the most important and critical design corrections in modern aviation history.
