Quick Definition

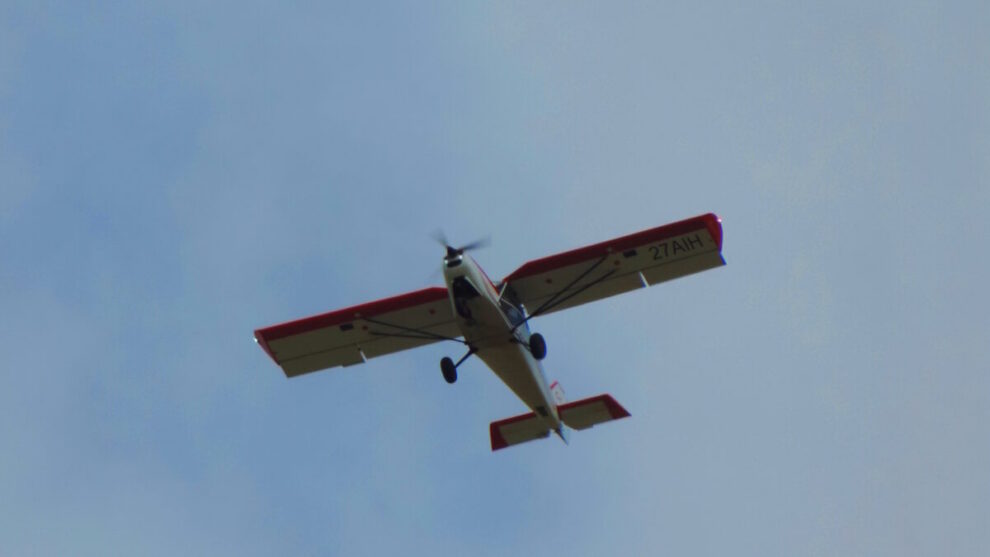

In aviation, aspect ratio (AR) is the relationship between the length of an airplane’s wing and its width. Simply put, it measures how long and skinny a wing looks. A high aspect ratio means the wing is very long and narrow, like a glider. Conversely, a low aspect ratio means the wing is short and wide, like a fighter jet.
How Does Aspect Ratio Work?
First, engineers use a specific math formula to find this number. They take the total length of the wing (the wingspan) and square it. Next, they divide that number by the total surface area of the wing.
AR=b²/S
Where:
- AR means the Aspect Ratio.
- b means the wingspan (distance from wingtip to wingtip).
- S means the total wing area.
This number plays a huge role in aerodynamics. When a plane flies, high-pressure air under the wing tries to escape around the wingtips. This escaping air creates swirling tornadoes called wingtip vortices. These vortices pull the plane backward, creating “induced drag.”
A wing with a high aspect ratio (long and skinny) has very small tips compared to its massive total size. Therefore, it creates very little induced drag. As a result, the plane glides easily through the air. On the other hand, a wing with a low aspect ratio (short and wide) has large tips compared to its overall size. Consequently, it creates massive swirling vortices and loses a lot of energy to air resistance.
Major Factors Influencing Wing Design
| Factor | Function | Impact on Aspect Ratio |
|---|---|---|
| Wingspan (b) | The total distance from tip to tip | Longer spans increase the ratio and improve aerodynamic efficiency |
| Wing Area (S) | The total flat surface size of the wing | Keeps the plane in the air; dividing span by this area yields the AR |
| Chord Line | The physical width of the wing from front to back | Narrow wings (small chords) create a high ratio; wide wings create a low ratio |
| Wing Root | Where the wing attaches to the body | Needs extra thick metal on high AR wings to prevent breaking |
Types of Aspect Ratios
| Category | Typical Number | Flight Characteristics | Common Aircraft |
|---|---|---|---|
| High AR | 15 to 35+ | Amazing glide distance, saves fuel, very slow roll speed | Sailplanes, Gliders, U-2 Spy Plane |
| Medium AR | 6 to 10 | Good balance of fuel economy and structural strength | Commercial passenger jets, Cessna trainers |
| Low AR | 2 to 5 | High structural strength, fast roll rates, poor fuel economy | Fighter jets, Space Shuttle, Concorde |
Typical Aspect Ratios
| Aircraft | AR |
|---|---|
| Sailplane | 20–35 |
| Boeing 787 | ~11 |
| Airbus A320 | ~9.5 |
| F-16 | ~3 |
| Concorde | ~1.8 |
Why Is Aspect Ratio Important in Aviation?
This single number dictates exactly what an airplane can do. First, airlines love high aspect ratio wings because they save massive amounts of fuel. Because long, skinny wings create less drag, the engines do not have to work as hard. Consequently, an airliner can fly across the ocean without running out of gas.
However, long wings have major physical limits. A long wing acts like a giant diving board. If a pilot tries to turn too fast, the extreme bending force will snap the wing right off the plane. Therefore, fighter aircraft typically use lower aspect ratios than gliders in order to balance strength, maneuverability, and high-speed performance.
Instead, fighter jets use low aspect ratio wings. Short, stubby wings are incredibly strong. For example, a fighter jet can dive, spin, and turn violently without breaking its wings. Furthermore, short wings allow the plane to roll left and right instantly. While these planes burn a lot of fuel to fight the extra drag, they gain the extreme speed and agility they need for combat.
Interesting Facts
- Nature uses this rule, too. The albatross bird has extremely long, skinny wings to glide over the ocean for days without flapping. Meanwhile, a sparrow has short, stubby wings to dart quickly through trees.
- Modern gliders feature some of the highest ratios in the world, often exceeding an AR of 30.
- The retired Space Shuttle had a very low AR of just 2.25. As a result, astronauts joked that it glided like a “falling brick” during landing.
- New commercial jets, like the Boeing 777X, have wings so long that they must fold the tips up after landing. Otherwise, the planes would crash into the airport terminal gates.
Frequently Asked Questions (FAQ)
What is the aspect ratio of a wing? It is a number that describes the shape of the wing. It compares the wing’s length from tip to tip against its average width.
Why do gliders have long, skinny wings? Long, skinny wings create very little backward drag. Therefore, the glider cuts through the air easily and stays flying for hours without needing an engine.
Why do fighter jets have short, stubby wings? Short wings are very strong. Consequently, they allow the jet to fly faster than the speed of sound and make violent turns without breaking.
Does a high aspect ratio make a plane faster? Not necessarily. A higher aspect ratio improves aerodynamic efficiency and reduces induced drag, but aircraft speed also depends on wing sweep, engine power, structural limits, and compressibility effects.
Key Takeaways
- First, aspect ratio measures how long and narrow a wing is.
- Second, you find the number by dividing the square of the wingspan by the wing area.
- Furthermore, high AR wings experience greater bending loads and therefore require stronger structural reinforcement.
- In contrast, low AR wings (short/wide) burn more fuel but provide amazing strength and roll speed.
- Finally, engineers choose the wing shape based entirely on the mission of the airplane.
AUTHORITATIVE REFERENCES
- Federal Aviation Administration (FAA) – Pilot’s Handbook of Aeronautical Knowledge (FAA-H-8083-25B), Chapter 4: Principles of Flight.
- National Aeronautics and Space Administration (NASA) – Glenn Research Center: Wing Geometry and Aspect Ratio.
