Quick Definition

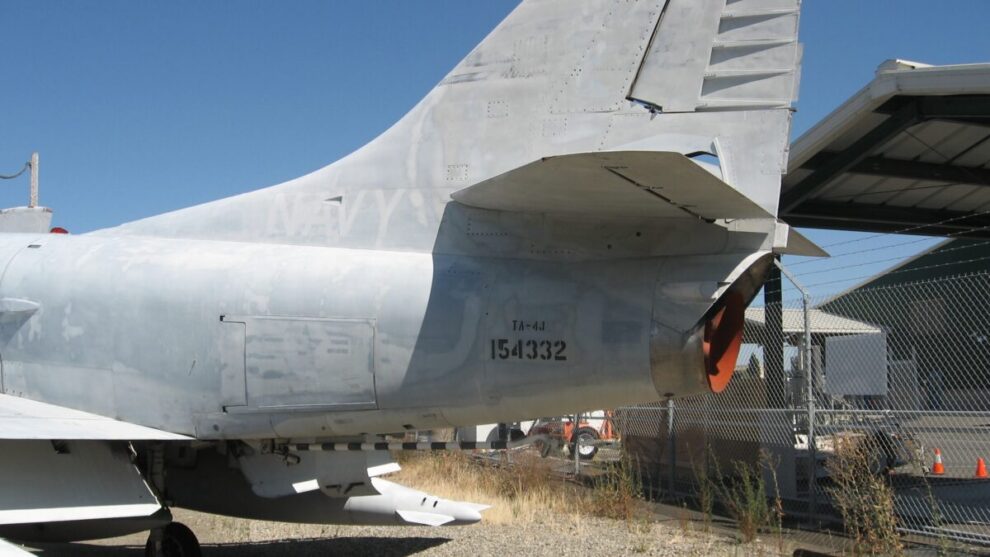

In aviation, the horizontal stabilizer (frequently referred to as the tailplane) is a fixed or movable aerodynamic surface located at the rear of an aircraft. This critical component provides longitudinal (pitch) stability. Consequently, it prevents the aircraft’s nose from oscillating up and down uncontrollably. Furthermore, it serves as the structural foundation for the elevators, which allow the pilot to actively control the aircraft’s pitch during flight.
How Does a Horizontal Stabilizer Work?
To understand this component, engineers often compare an aircraft in flight to a seesaw balancing on a central pivot point—the Center of Gravity (CG). In most conventional aircraft designs, the aircraft’s center of gravity is normally positioned ahead of the neutral point, creating a naturally stable pitching tendency. While this design inherently increases overall flight stability, it creates a constant, natural tendency for the aircraft’s nose to pitch downward.
The horizontal stabilizer counteracts this nose-down tendency. Instead of lifting the tail up, stabilizers often operate at a negative angle of attack and may use symmetrical or slightly inverted airfoil sections. As a result, it generates aerodynamic “downforce” (negative lift) at the rear of the aircraft. This downward pull acts on the long lever arm of the fuselage to hold the tail down and keep the nose level.
Mathematically, engineers calculate the balancing pitching moment around the center of gravity using this basic relationship:
Mcg=Ftail×dtail
Where:
- Mcg represents the balancing moment around the Center of Gravity.
- Ftail represents the aerodynamic force (usually downward) generated by the tailplane.
- dtail represents the distance (lever arm) from the Center of Gravity to the aerodynamic center of the tail.
During flight, variations in airspeed, engine thrust, and passenger movement shift the aircraft’s balance. Modern transport aircraft utilize a Trimmable Horizontal Stabilizer (THS), where a powerful jackscrew adjusts the angle of the entire stabilizer during flight. Consequently, this system maintains a perfectly level attitude without requiring the pilot to hold constant pressure on the control yoke.
Major Components
| Component | Function | Importance |
|---|---|---|
| Fixed Stabilizer | Provides static longitudinal stability | Prevents uncommanded pitch deviations in turbulent air |
| Elevator | Hinged trailing edge surface that moves up and down | Allows the pilot to actively command nose-up or nose-down maneuvers |
| Trim Tab | Small hinged section on the trailing edge of the elevator | Aerodynamically relieves control column pressure for the pilot |
| Jackscrew | Mechanical actuator that pivots the entire stabilizer (on THS models) | Optimizes aerodynamic efficiency and trims the aircraft for cruise |
| Empennage | The complete tail assembly housing the stabilizer | Integrates both horizontal and vertical flight controls structurally |
Types of Horizontal Stabilizers
| Type | Characteristics | Common Use |
|---|---|---|
| Conventional | Mounted horizontally at the base of the vertical tail | Most general aviation and early commercial aircraft |
| T-Tail | Mounted at the very top of the vertical stabilizer | Regional jets, heavy cargo lifters, and gliders |
| Cruciform | Mounted midway up the vertical stabilizer, forming a cross | Certain corporate jets and twin-engine turboprops |
| Stabilator | An all-moving tailplane combining stabilizer and elevator functions | High-performance fighter jets and specific light aircraft (e.g., Piper Cherokee) |
Why Is a Horizontal Stabilizer Important in Aviation?
The tailplane is the absolute foundation of safe longitudinal flight. Without adequate longitudinal stability, the aircraft would become extremely difficult to control. By constantly balancing the aerodynamic forces across the fuselage lever arm, the stabilizer allows the aircraft to maintain a steady altitude without continuous, exhausting pilot inputs.
From a structural engineering perspective, the placement of this component drastically affects the aircraft’s stall recovery characteristics. For example, engineers use a T-tail configuration to keep the stabilizer out of the turbulent wake of the main wing and engines. However, at extreme angles of attack, the main wing’s aerodynamic wake can completely blanket a T-tail. As a result, this creates a dangerous condition known as a “deep stall,” where the pilot loses all elevator authority to push the nose down and recover.
Furthermore, Trimmable Horizontal Stabilizers (THS) are vital for commercial airline fuel efficiency. Instead of deflecting the elevator—which creates significant aerodynamic drag—the flight computer pivots the entire stabilizer to trim the aircraft. Therefore, the aircraft flies faster and burns less fuel during a long-haul cruise.
| Component | Role |
|---|---|
| Horizontal Stabilizer | Provides pitch stability |
| Elevator | Controls pitch attitude |
| Trim Tab | Reduces pilot control forces |
| THS | Adjusts aircraft trim efficiently |
Interesting Facts
- Aircraft with a “canard” design (like the Eurofighter Typhoon or the Beechcraft Starship) place the horizontal stabilizer at the front of the aircraft, meaning it generates positive lift rather than downforce to balance the plane.
- Because a conventional tail pulls downward, the main wings must generate enough lift to support the actual weight of the airplane plus the downward aerodynamic force of the tailplane.
- Delta-wing aircraft, such as the Concorde or the Dassault Mirage, do not have a horizontal stabilizer; they rely entirely on the vast surface area and trailing edge “elevons” of the main wing for pitch stability.
- The catastrophic failure of a stabilizer’s jackscrew mechanism was the direct cause of the tragic Alaska Airlines Flight 261 crash in 2000.
Frequently Asked Questions (FAQ)
What is the horizontal stabilizer on a plane? It is the small, horizontal wing-like structure at the rear of the aircraft that keeps the plane flying level and prevents the nose from pitching up and down uncontrollably.
What is the difference between the stabilizer and the elevator? The stabilizer is typically the fixed (or slowly trimming) front section that provides passive stability. The elevator is the hinged rear section that the pilot actively moves to climb or descend.
Why do horizontal stabilizers push down instead of lift up? Because the aircraft’s center of gravity is usually in front of the main wing’s center of lift, the nose naturally wants to drop. The tail acts as a counterweight, generating an aerodynamic downward pull to keep the nose level.
What is a stabilator? A stabilator is a fully movable horizontal tail surface. Instead of having a fixed stabilizer and a hinged elevator, the entire horizontal surface pivots as a single unit to change pitch.
Key Takeaways
- The horizontal stabilizer provides essential longitudinal (pitch) stability to an aircraft.
- In conventional designs, it generates aerodynamic downforce to balance the aircraft’s nose-heavy center of gravity.
- It houses the elevators, which provide active pitch control, and trim mechanisms, which relieve pilot workload.
- T-tail, Conventional, and Cruciform are the most common commercial design configurations.
- Modern airliners pivot the entire stabilizer (THS) to maximize aerodynamic efficiency during cruise flight.
